💼 Building an Employee Expense Reimbursement Workflow in Oracle APEX

Managing employee expense reimbursements is a classic business use case — and a perfect fit for Oracle APEX Workflows. In this blog, we’ll build a real-world, end-to-end Expense Reimbursement Workflow where small expenses are auto-approved and larger ones require manager approval.

By the end of this guide, you’ll have:

• An automated approval flow
• Conditional logic (auto vs manual approval)
• Human tasks for managers
• Email notifications
• A working submission form

Let’s dive in 🚀

🧩 Workflow Scenario

Business Rules:

• An employee submits an expense claim
• If the amount is less than $100 → ✅ Auto-approved
• If the amount is $100 or more → 👨‍💼 Manager approval required
• If approved → 💸 Payment is processed
• If rejected → 📧 Employee is notified

🔧 Part 1: Prerequisites – Database Setup

Before creating the workflow, we need a table to store expense claims.

Run the following SQL in SQL Workshop:

CREATE TABLE expense_claims (
    claim_id        NUMBER GENERATED BY DEFAULT ON NULL AS IDENTITY PRIMARY KEY,
    employee_name   VARCHAR2(100),
    employee_email  VARCHAR2(100),
    expense_type    VARCHAR2(50), -- Travel, Meals, Hardware
    amount          NUMBER,
    description     VARCHAR2(4000),
    status          VARCHAR2(20),  -- SUBMITTED, APPROVED, REJECTED, PAID
    submitted_date  TIMESTAMP WITH LOCAL TIME ZONE DEFAULT SYSTIMESTAMP
);

This table will be the backbone of our workflow.

🔁 Part 2: Creating the Workflow

Navigation:

Shared Components → Workflows and Automations → Workflows → Create

Workflow Details:

• Name: Expense Reimbursement
• Static ID: EXP_REIMB
• Version: 1.0
• Title: Expense Claim for &EMPLOYEE_NAME.

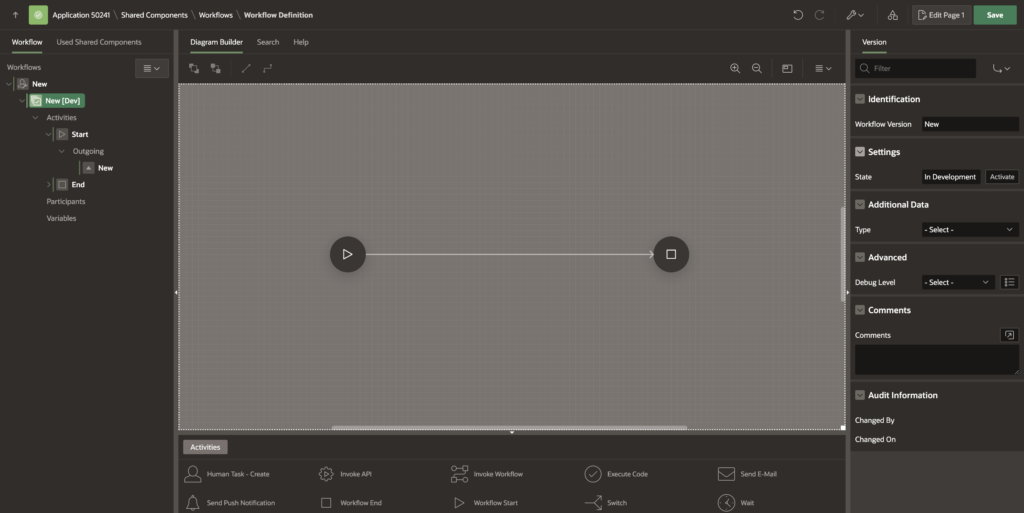

Delete the default Execute Code activity so you start with a clean slate.

📦 Part 3: Defining Data (Parameters & Variables)

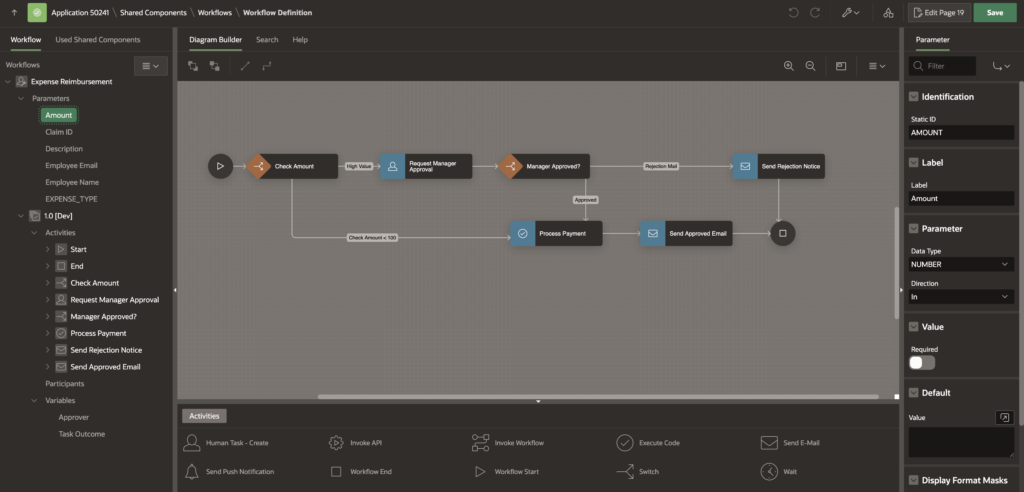

1️⃣ Workflow Parameters (Inputs)

Create the following parameters:

2️⃣ Workflow Variables (Internal Logic)

Create these variables:

🔀 Part 4: Auto-Approval Logic (Switch Activity)

We’ll automatically approve low-value expenses.

Steps:

1. Drag a Switch activity after Start
2. Name it: Check Amount
3. Type: PL/SQL Expression
4. Expression:

:AMOUNT < 100

Branches:

• True → Auto-Approve (skip manager)
• False → Manager approval required

👨‍💼 Part 5: Creating the Human Task (Manager Approval)

Before adding a Human Task to the workflow, define it.

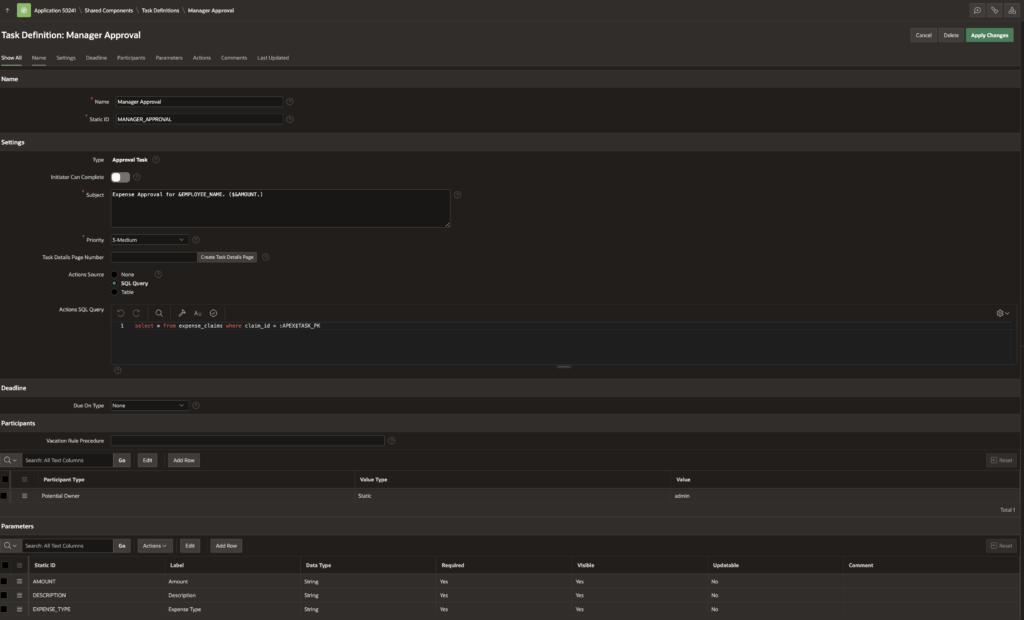

Task Definition

Navigation:

Shared Components → Task Definitions → Create

Settings:

• Name: Manager Approval
• Subject: Expense Approval for &EMPLOYEE_NAME. ($&AMOUNT.)
• Priority: Medium

Participants:

• Type: Potential Owner
• Value: admin (or role/user)

Actions Source (SQL):

select * from expense_claims where claim_id = :APEX$TASK_PK;

Task Parameters:

• AMOUNT
• DESCRIPTION
• EXPENSE_TYPE

Save the task definition.

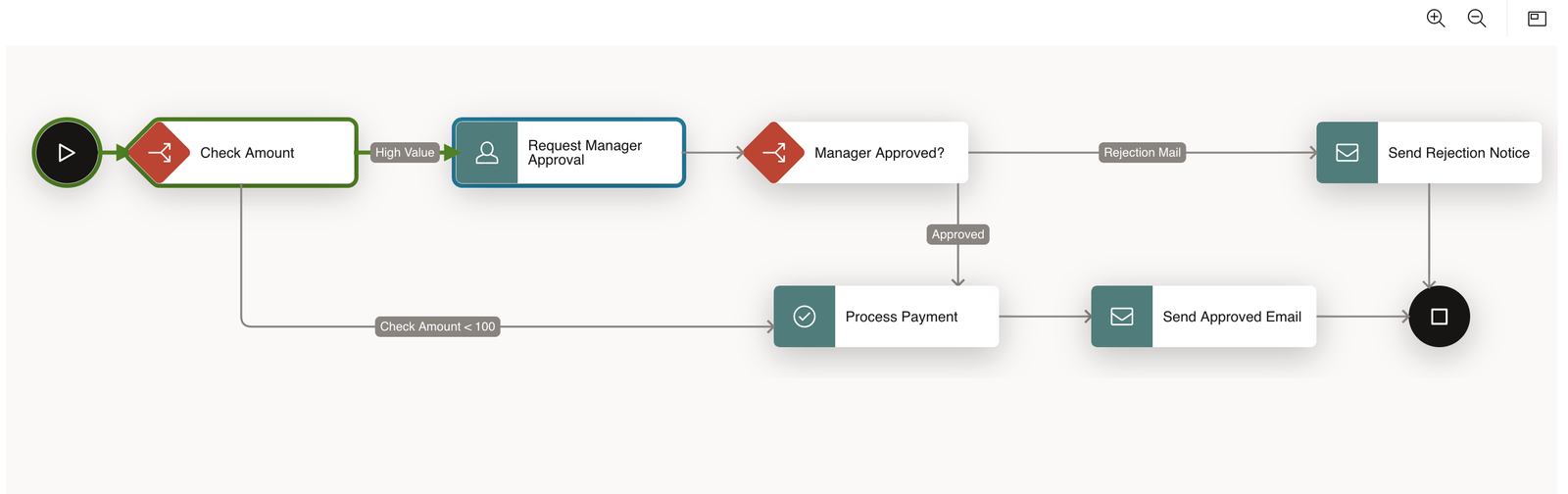

🧱 Part 6: Completing the Workflow Diagram

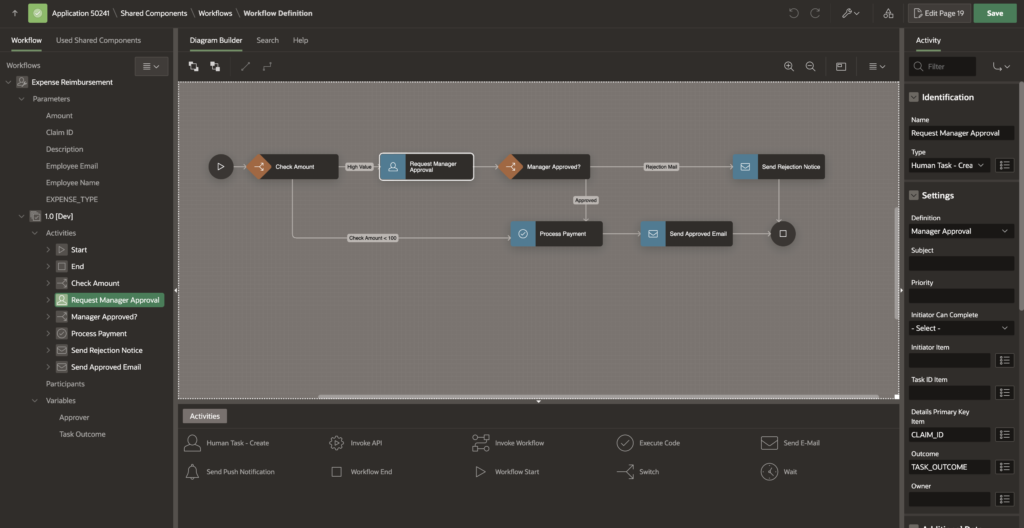

🔹 Step A: Manager Approval Path

Drag Human Task – Create:

• Name: Request Manager Approval
• Task Definition: Manager Approval
• Details PK Item: CLAIM_ID
• Task Outcome Item: TASK_OUTCOME

Connect:

• From Check Amount → False → Human Task

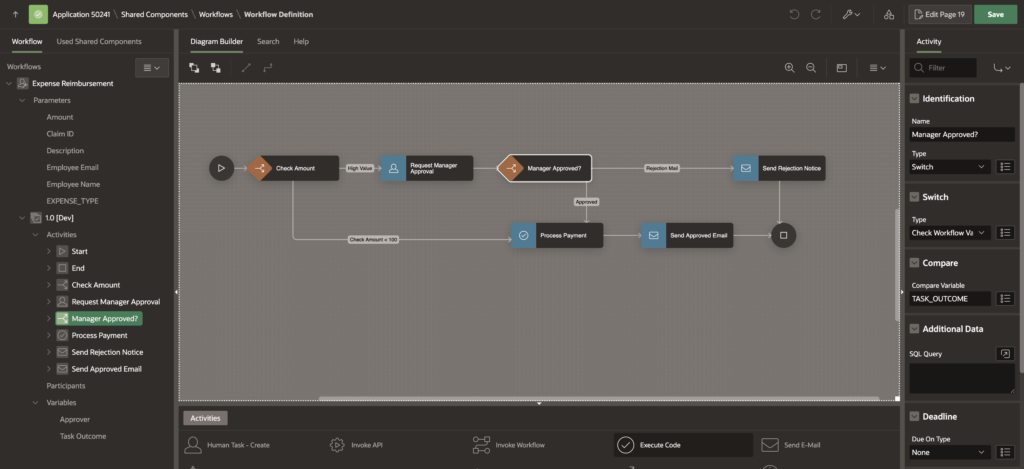

🔹 Step B: Manager Decision Check

Add a Switch after the Human Task:

• Name: Manager Approved?
• Type: Check Workflow Variable
• Variable: TASK_OUTCOME
• Value: APPROVED

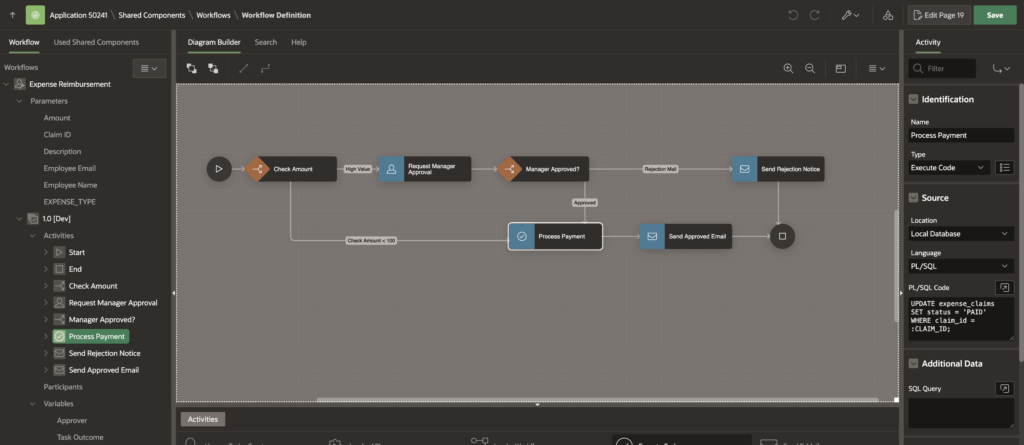

🔹 Step C: Process Payment

Both auto-approved and manager-approved paths lead here.

Add Execute Code activity:

• Name: Process Payment

UPDATE expense_claims
SET status = 'PAID'
WHERE claim_id = :CLAIM_ID;

Connections:

• Check Amount (True) → Process Payment
• Manager Approved? (True) → Process Payment

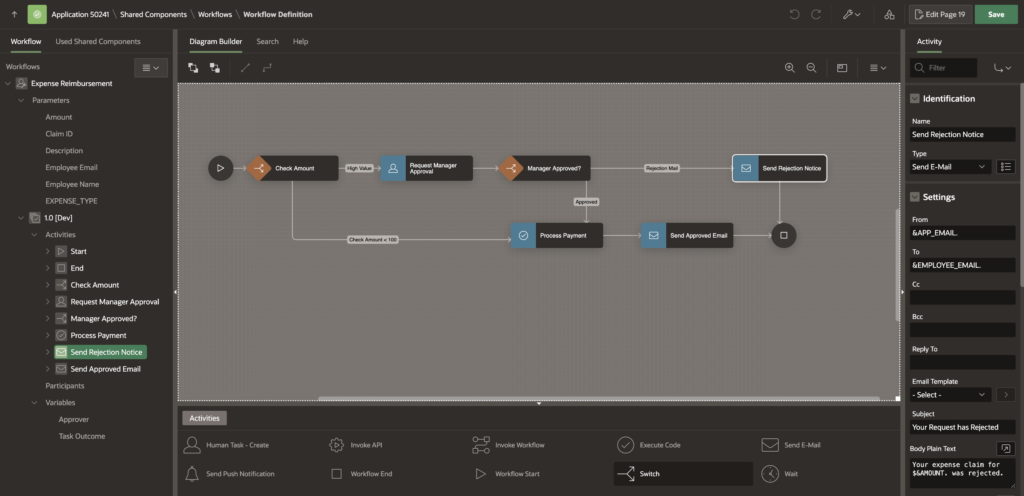

🔹 Step D: Rejection Path

Add Send E-Mail activity:

• Name: Send Rejection Notice
• To: &EMPLOYEE_EMAIL.
• Body:

Your expense claim for $&AMOUNT. was rejected.

(Optional) Add Execute Code to update status:

UPDATE expense_claims
SET status = 'REJECTED'
WHERE claim_id = :CLAIM_ID;

Connect:

• Manager Approved? (False) → Send Rejection Notice

🔹 Step E: End the Workflow

Connect both:

• Process Payment → End
• Send Rejection Notice → End

📝 Part 7: Creating the Submission Page

Create a Form Page:

• Table: EXPENSE_CLAIMS
• Page Name: Submit Expense
• Items: Name, Email, Amount, Description, Expense Type

▶ Integrating the Workflow

Go to Processing tab:

Create a Process:

• Type: Workflow
• Action: Start
• Workflow Definition: Expense Reimbursement

Primary Key Item:

• P_CLAIM_ID

Parameter Mapping:

• EMPLOYEE_NAME → P_EMPLOYEE_NAME
• AMOUNT → P_AMOUNT
• CLAIM_ID → P_CLAIM_ID

⚠️ Important: Ensure this process runs after the Automatic Row Processing (DML) process.

🧪 Part 8: Testing the Workflow

✅ Test 1: Auto-Approval

• Submit expense: $40
• Result: Status immediately becomes PAID

👨‍💼 Test 2: Manager Approval

• Submit expense: $150
• Status remains SUBMITTED
• Approver receives task
• Approve task → Status becomes PAID

🎯 Final Thoughts

This example demonstrates how powerful and clean Oracle APEX Workflows are for real business processes:

• Conditional routing
• Human approvals
• Automation
• Notifications

You can extend this further with:

• Multi-level approvals
• SLA reminders
• Audit history
• Dynamic approvers

Happy building with Oracle APEX! 🚀
